Your solar panels deserve to shine every day
Fully automated, cloud-connected pressure cleaning for solar installations. Zero human intervention. Maximum energy yield. Proven results.
The Problem
Dust is silently draining your investment
India's solar boom is real — but inconsistent cleaning is costing plant owners lakhs every year. Here's what's actually happening.

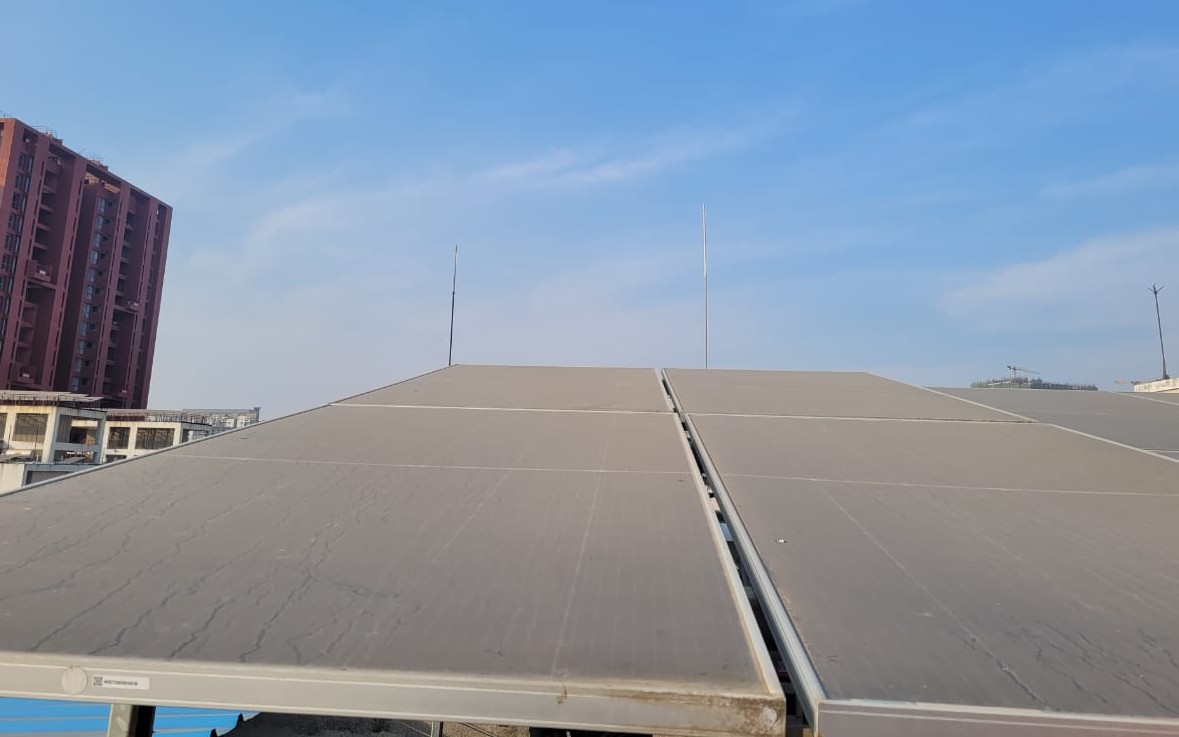

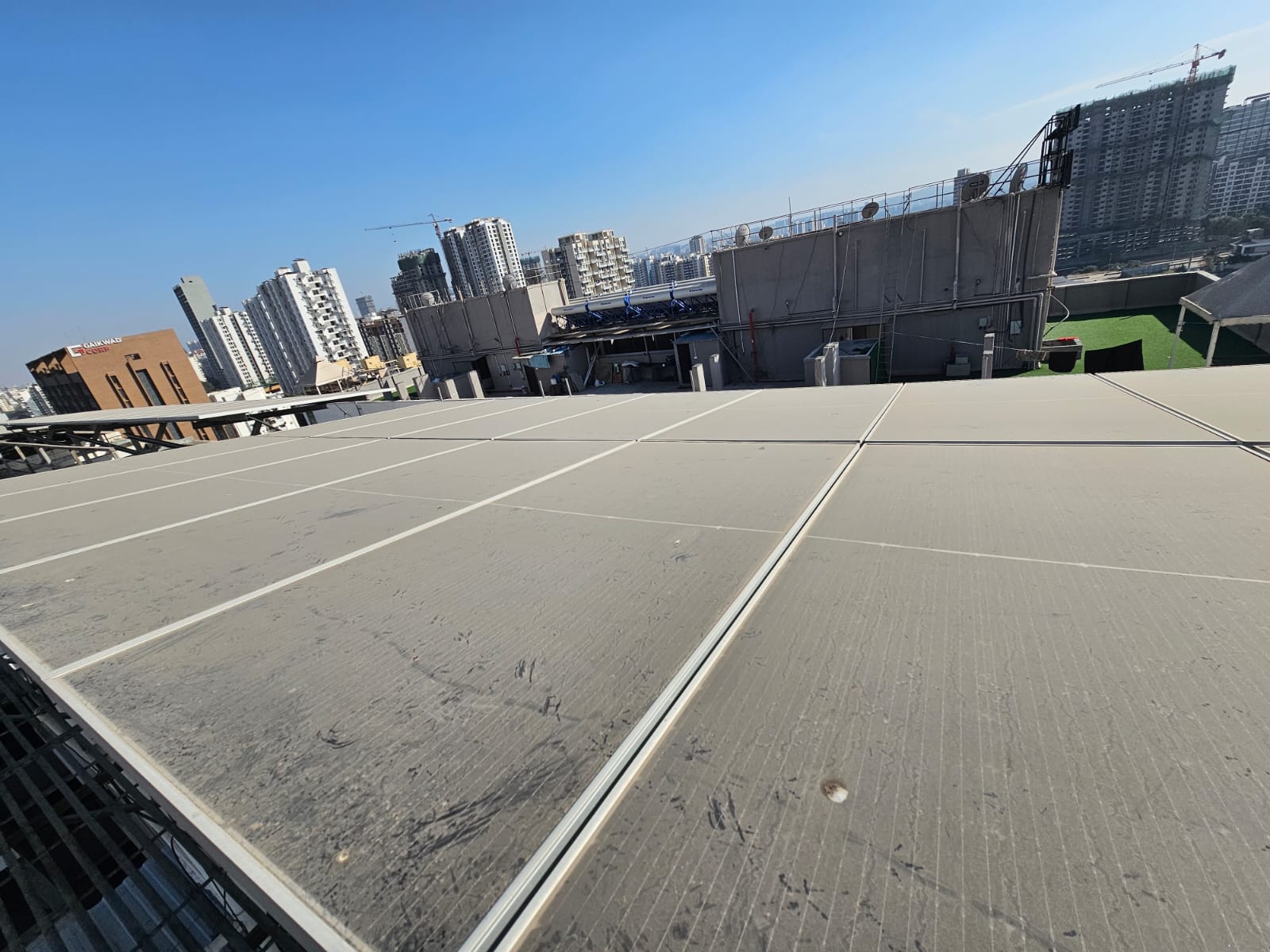

Dust & Soiling Losses

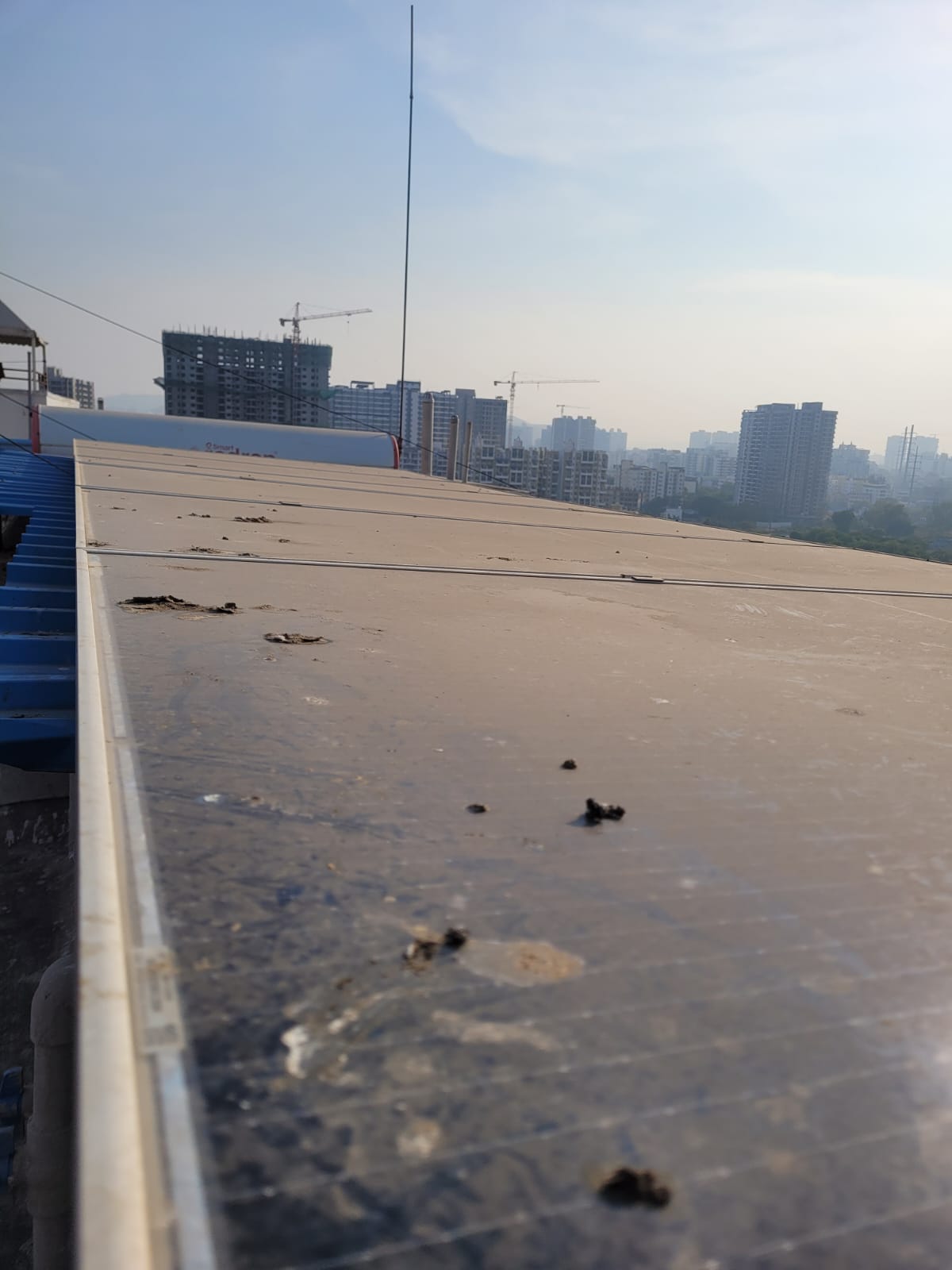

Accumulation of dust, bird droppings, and airborne particles reduces panel efficiency dramatically. Studies confirm output drops by 5–20% — and can be even higher in dry, dusty Indian climates.
Up to 20% output lostManual Cleaning is Risky & Unreliable
Sending workers up rooftops or onto elevated structures is dangerous. Scheduling is inconsistent, quality is variable, and each manual session is a liability and expense.
Safety & liability riskRobots Need Babysitting
Automated cleaning robots sound great — until they break down, fall off panels, or require costly operator intervention and maintenance contracts.
High maintenance costSprinklers Don't Cut It
Existing gravity-fed sprinkler solutions lack sufficient pressure to actually clean panels. They wet the dust and leave a muddy film — often worse than before.
Inadequate cleaningUneven Pressure Across Arrays
When all nozzles open simultaneously, pressure drops significantly for far-end panels. Some panels shine, others remain dirty.
Inconsistent resultsHigh-Rise & Hard-to-Reach Panels
For multi-storey buildings and commercial rooftops, manual cleaning is almost impossible — requiring scaffolding, rope access teams, and lengthy shutdowns.
Access & downtime issuesThe Solution
PanelCrystal — intelligent pressure cleaning, automated
A fully automated, cloud-connected cleaning system that delivers consistent, pressurized water flow across every panel — without human intervention.
Nozzles Grouped by Zone
Nozzles are mounted directly on your panels and grouped into sets of 4–5. Only one group fires at a time — maintaining full water pressure at every nozzle in that group.
Motor Auto-Starts the Cycle
The controller automatically starts the pump motor first, verifies water flow via a flow sensor, then sequentially opens each solenoid valve group for ~40 seconds each.
Sequential Valve Operation
Solenoid valves (controlled via Modbus RS485 relay boards) fire in sequence. Each group cleans thoroughly before the next activates — consistent, effective cleaning across the array.
Schedules + Live Dashboard
Set two cleaning schedules per day, choose which days of the week, and monitor live valve states, motor status, and last cleaning time — from a web dashboard on your phone or PC.
Safety First — Always
Dry-run protection stops the motor if flow is not detected. Emergency stop kills all relays instantly. The RTC-backed clock keeps schedules running through WiFi outages.

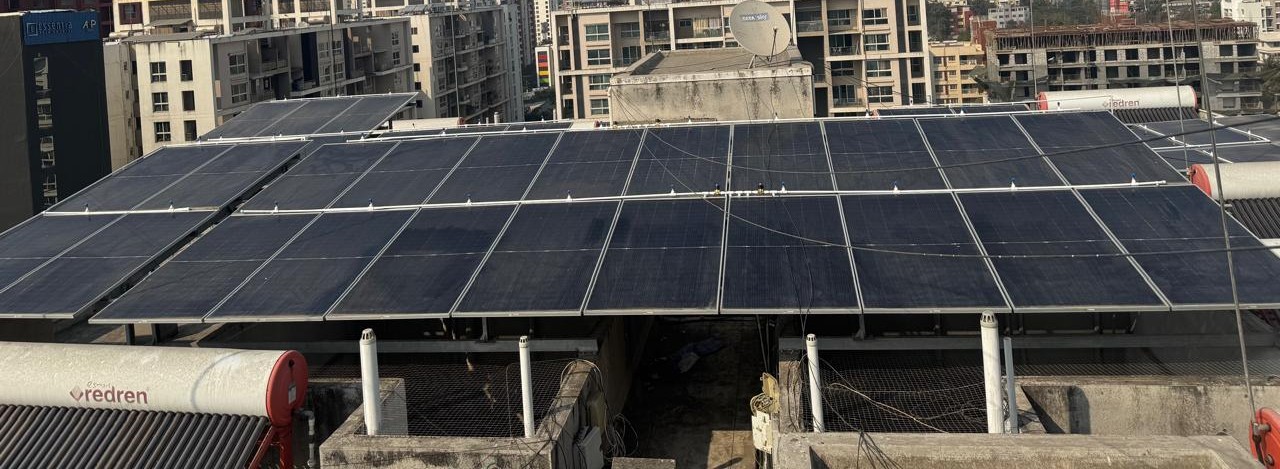

Sequential, pressurized cleaning of Solar panels.
PanelCrystal — Sequential Zone Cleaning
System Specs

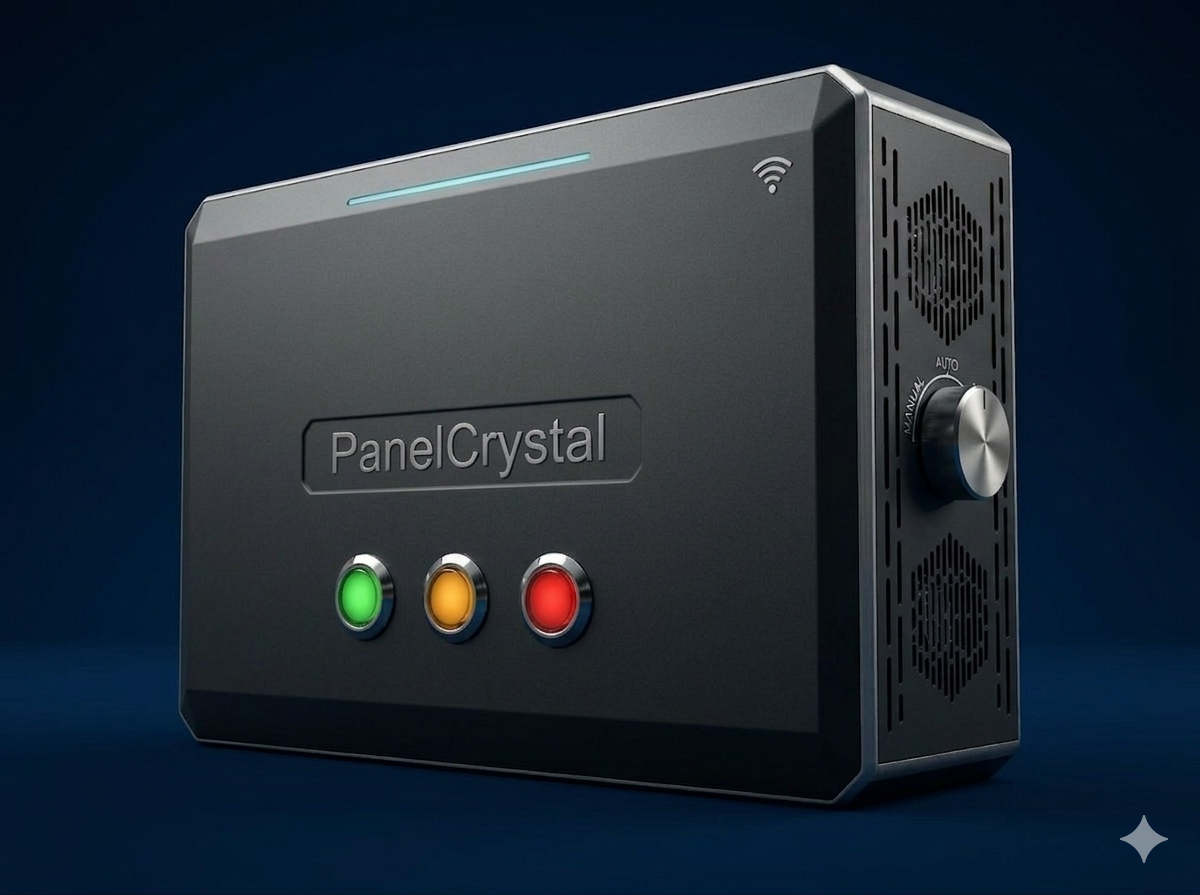

Controller: SoC + Modbus
Protocol: Modbus RS485
Clock: RTC
Pump: 1–1.5 HP
Interface: WiFi Dashboard
Cloud: VPS Status API
Under the Hood
Built on industrial-grade hardware
Modbus RS485 Relay Board
Industrial Modbus RTU protocol controls solenoid valve relays with precision. Supports up to 50 relays — scales from 10 to 200+ panels effortlessly.
RTC Module
Battery-backed Real-Time Clock ensures cleaning schedules never miss — even during power cuts or WiFi outages. NTP-synced when internet is available.
Flow Sensor Guard
Detects water flow after motor start. If no flow is detected (empty tank / pump failure), the cycle aborts immediately — protecting your pump from dry-run damage.
Cloud Status API
Pushes live status to a VPS endpoint every 5 seconds. View valve states, motor status, and last cleaning time from anywhere in the world.
Responsive Web Dashboard
Access full control via any browser — no app install required. Configure WiFi, set schedules, trigger manual cycles, and hit emergency stop from your phone.
Real Data
Numbers that don't lie
Measured on a real installation: January 2026. System commissioned 10 January — partial-month data extrapolated to a full-month equivalent.
*System installed on Jan 10. Month recorded 5.5 MWh. Since 20 of 31 days were cleaned, extrapolating to 31 days gives ~6.05 MWh equivalent. Actual increase from installation date: +23.5% over the cleaned period.
+12.2%
Conservative month-over-month energy yield improvement (4.9 → 5.5 MWh). Real gain on cleaned days is significantly higher.
+600 kWh
Additional electricity generated in the month PanelCrystal was installed — real money back in your pocket every month.
0 Workers
Zero manual cleaning labour required. Zero rooftop risk. Zero scheduling hassle. The system runs itself.
Why PanelCrystal
Every benefit engineered in
Guaranteed Cleaning Schedule
Two cleaning times per day, configured for any days of the week. The RTC ensures your panels are cleaned on time, every time.
Set & ForgetMore Revenue Per Month
Clean panels produce more electricity. At current grid/net-metering rates, even a 10% yield improvement on a 10 kW system can add ₹1,200–3,000/month.
Direct ROIWater Efficiency
Sequential group firing means maximum pressure at every nozzle, with no water wasted on low-pressure spray.
Eco-ConsciousPump & System Protection
Flow detection aborts the cycle if the water tank is empty. Emergency stop shuts everything down in one click from anywhere.
Always SafeFull Visibility, Anywhere
Live dashboard shows every valve state and motor status. Cloud API pushes updates every 5 seconds.
Remote MonitoringManual Assist Mode
For periodic deep cleans or maintenance, manual mode gives full individual relay control without ripping out the automation.
Hybrid CapableCustomizable to Any Layout

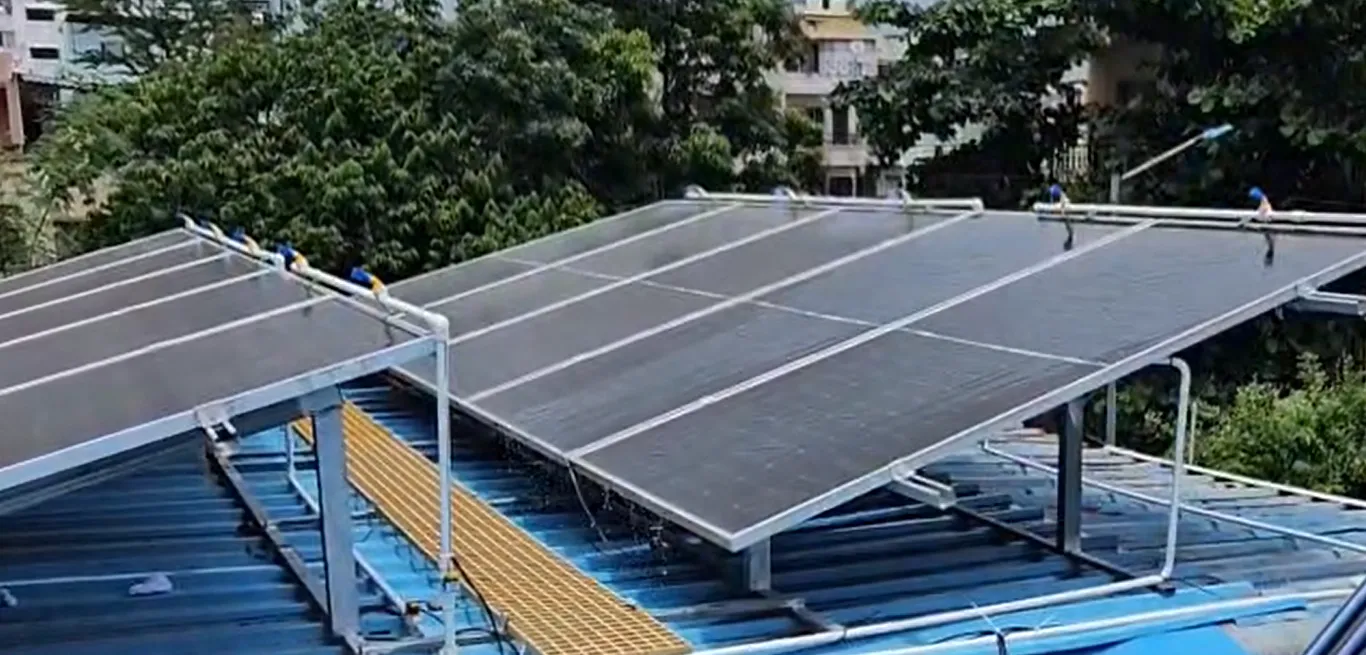

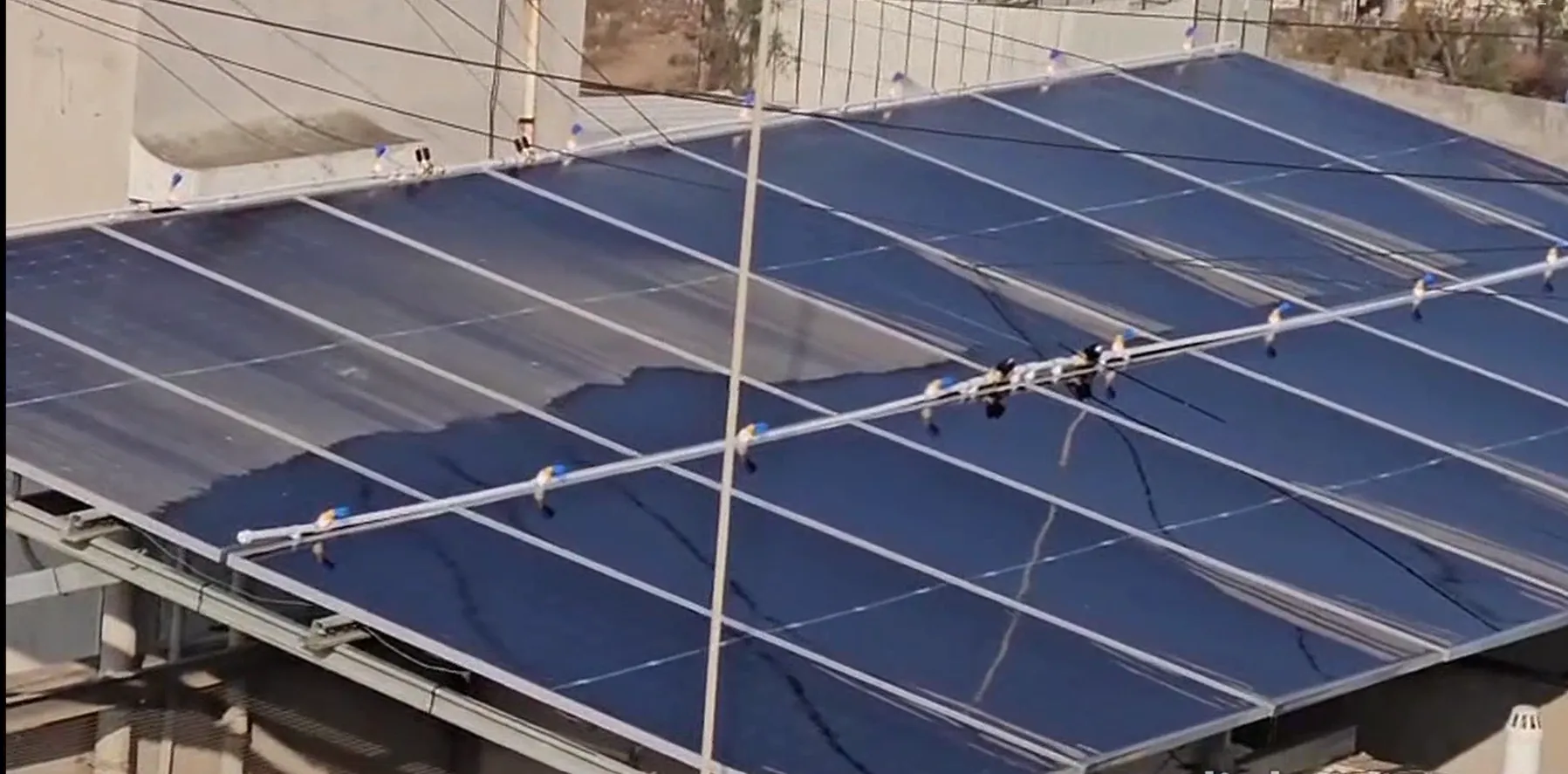

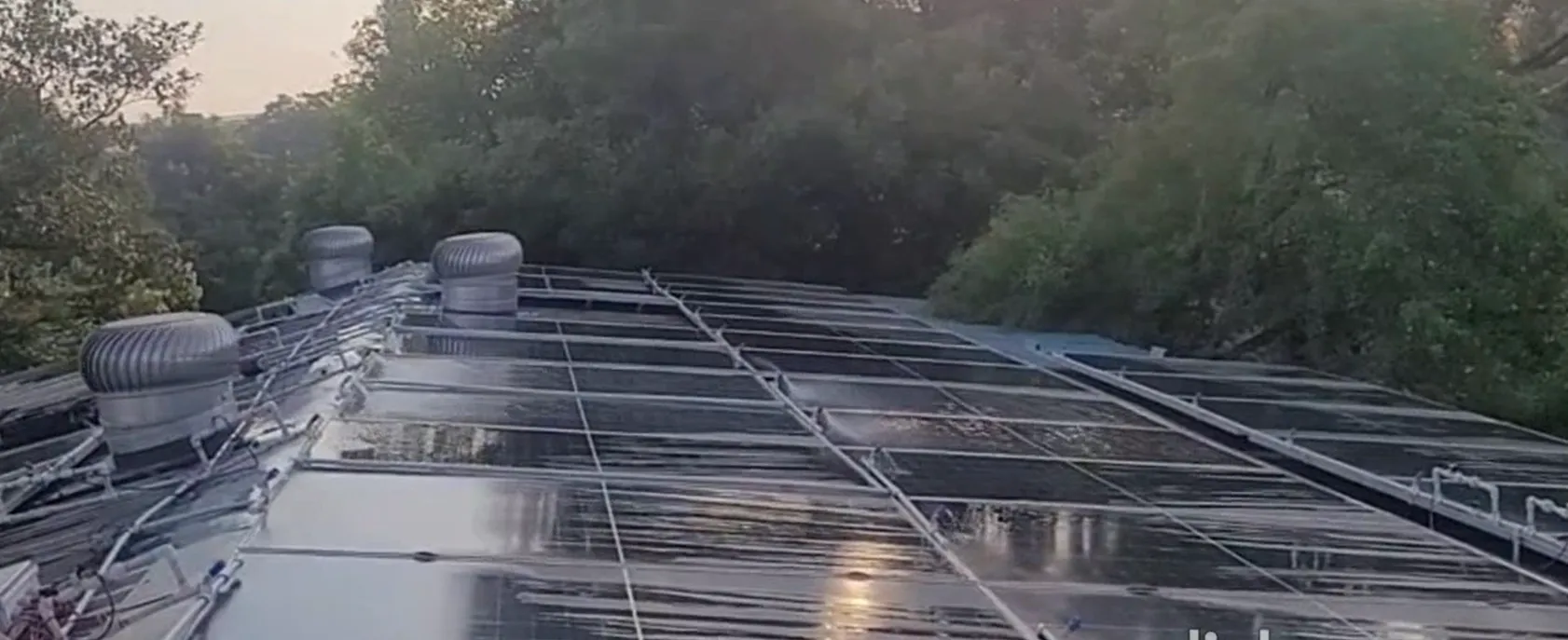

Whether you have 10 panels on a residential roof or 200 on a commercial terrace, PanelCrystal's relay grouping adapts to your layout.
ScalablePIN-Protected Configuration
System configuration is secured with a PIN. Only authorized personnel can change schedules, modes, or network settings.

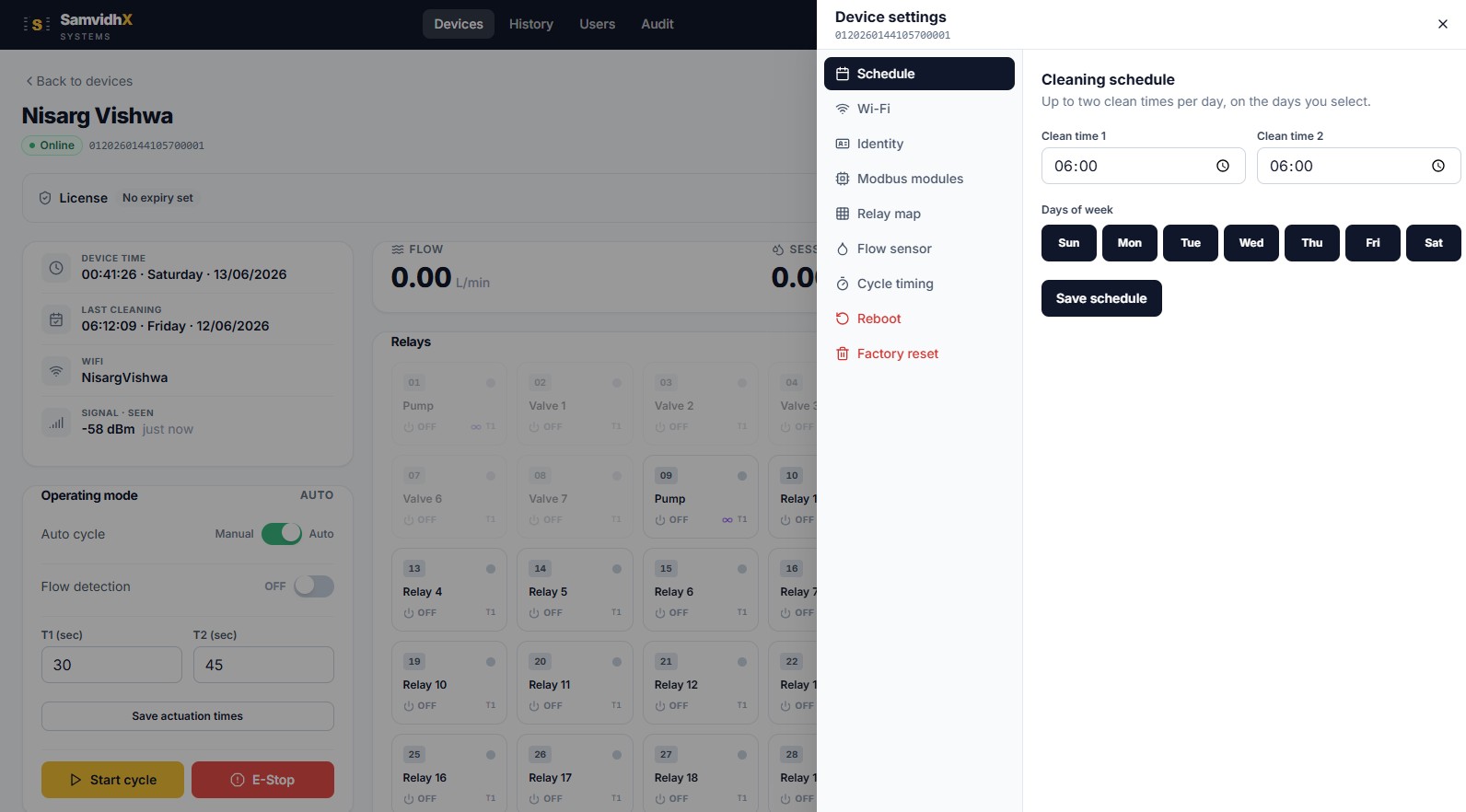

SecureThe Dashboard
Total control in your pocket
Access the PanelCrystal web interface from any device on your network — or remotely via the cloud API.
Smart Tools
Calculate your exact savings
Enter your system details below to get real numbers for ROI and water consumption.
Your Solar System Details
e.g. 5 kW residential, 50 kW commercial
Auto-calculated: capacity × 130 kWh/kW/month
Typical India range: 5–20%. Use 12% as a safe estimate.
Auto-calculated: capacity × 2 panels/kW
Auto-calculated based on system size (ref: 58 kW = ₹80,000)
Your Results
—
Return on Investment over 5 years
*Estimates based on your inputs. Actual results may vary based on location, panel type, soiling conditions, and cleaning frequency.
Getting Started
From survey to clean panels in days
Site Survey
Our team visits your installation. We assess panel layout, rooftop access, water supply points, and existing electrical infrastructure.
Custom System Design
We design the nozzle grouping, pipeline routing, and electrical plan tailored to your panel arrangement and building layout.
Pipeline & Nozzle Installation
Pressure-rated pipes are routed across the roof. Nozzles are mounted on panel frames for optimal spray coverage and angle.
Electrical & Controller Setup
The PanelCrystal controller (Modbus + RTC) is installed in a weatherproof enclosure. Relays, solenoid valves, and the pump are wired and tested.
WiFi & Cloud Configuration
Your system connects to your network. Cleaning schedules are set, cloud API keys configured, and the dashboard is commissioned and tested.
Final Commissioning & Handover
A complete cycle is run in your presence. You receive a dashboard walkthrough, emergency procedures, and full after-sales support contact.
What's Next
The roadmap is ambitious
Household Integration
Expand PanelCrystal to control home pumps and common lighting for housing societies. One controller, full building automation.
FOTA — Remote Firmware Updates
Over-the-air firmware updates mean your system gets better over time without any site visit.
Water Recycling System
Capture, filter, and recycle used cleaning water. Dramatically reduce water consumption for large installations.
Soap / Ionized Water Wash
Periodic deep-clean mode with surfactant or ionized water for stubborn soiling — integrated into the same nozzle and valve infrastructure.
Ready when you are
Ready to let your panels work at full power?
Book a free site survey today. We'll design a custom PanelCrystal system and give you a detailed quotation — no obligation.
